Construction Challenges and Solutions
The Tianyuan Chemical Spherical Shell Grid Structure project in Shanghai's Jinshan Chemical Park presented several challenges that required innovative solutions from Dunban Steel Structure & Investment. One of the primary challenges was ensuring the structural integrity and stability of the quadrilateral pyramid - shaped spherical grid structure with a diameter of approximately 81.5 meters. Given its large - scale and unique shape, precise engineering calculations were crucial.
To address the load - bearing requirements, engineers conducted in - depth finite element analysis. This involved modeling the entire structure on computer software to simulate various load conditions, such as wind loads, seismic loads, and the self - weight of the structure. Based on the analysis results, the design of the grid nodes and the selection of steel materials were optimized. High - strength steel was chosen for critical components to enhance the overall load - bearing capacity while minimizing the weight of the structure, which is essential for reducing foundation costs and improving construction efficiency.

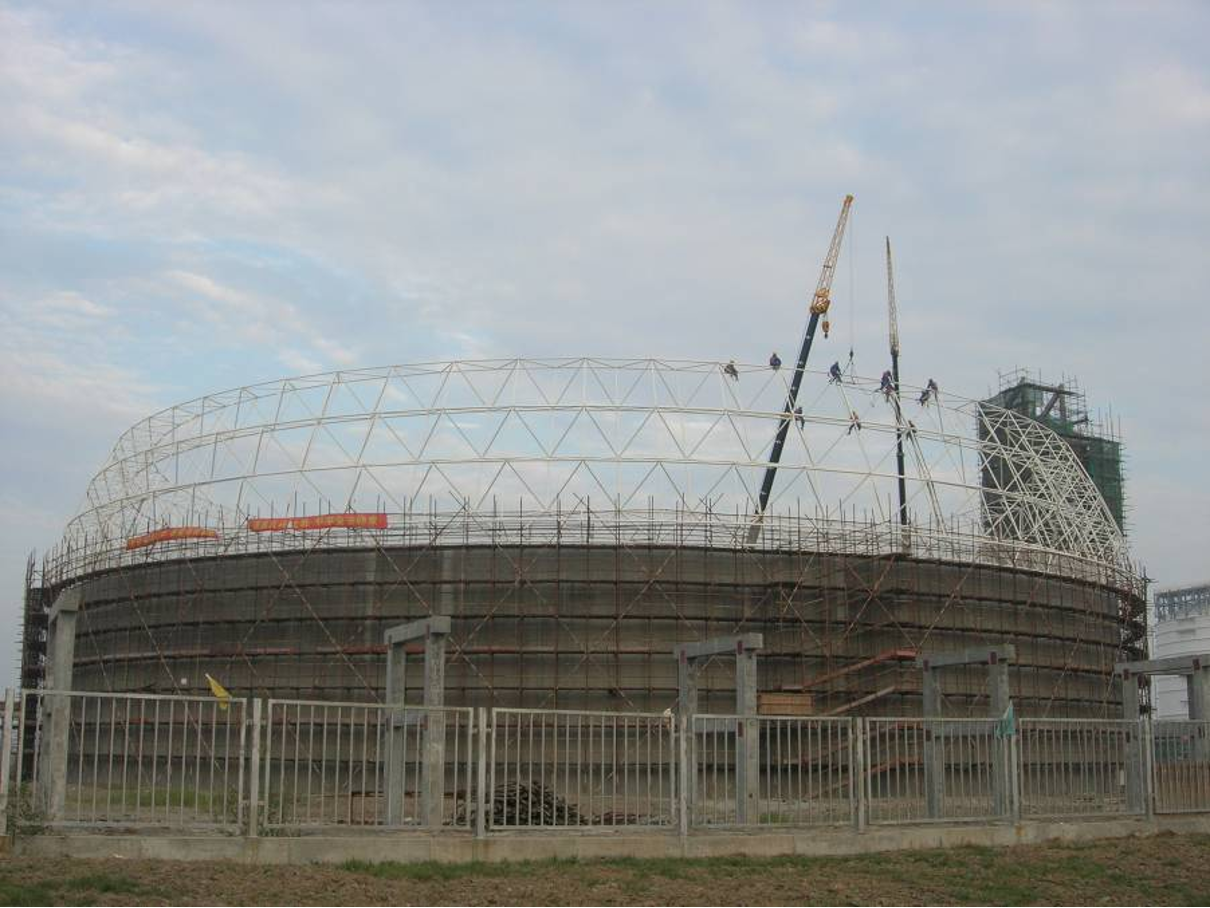

Another challenge was the installation of the large - scale spherical shell. Traditional construction methods would have been time - consuming and difficult to achieve the required accuracy. Therefore, Dunban adopted a modular construction approach. The spherical shell was pre - fabricated into smaller, manageable modules in the factory. These modules were then transported to the construction site and lifted into place using large cranes.
During the lifting process, advanced positioning and measurement systems were used to ensure that each module was accurately aligned. This not only improved the construction speed but also guaranteed the quality of the final structure. For example, laser - based positioning devices were used to measure the position of each node with an accuracy of within a few millimeters, which is vital for the seamless connection of the modules.
Material Selection and Quality Control
The choice of materials was another key aspect of this project. The roof panels used No. 750 model, 0.6 - millimeter - thick fluorocarbon single - layer color steel plates. Fluorocarbon coatings were selected for their excellent weather resistance, corrosion resistance, and long - term color retention properties. This is particularly important in a chemical park environment where there may be exposure to various chemicals and harsh weather conditions.
In terms of quality control, strict inspection procedures were implemented at every stage of the project. For the steel grid structure, raw materials were first tested for their mechanical properties, such as tensile strength, yield strength, and elongation. During the fabrication process, each welding joint was inspected using non - destructive testing methods, including ultrasonic testing and radiographic testing, to ensure the integrity of the welds.
For the roof panels, samples were randomly selected for coating thickness measurement, adhesion testing, and color consistency checks. Only when all the materials met the strict quality standards were they used in the construction.
Environmental Considerations
As the project was located in a chemical park, environmental protection was of utmost importance. Dunban took several measures to minimize the environmental impact of the construction. During the construction process, dust control measures were implemented, such as sprinkling water on the construction site regularly to reduce dust emissions.
Waste management was also carefully planned. Construction waste, such as steel scrap and packaging materials, was sorted and recycled whenever possible. In addition, noise control measures were in place to reduce the impact of construction noise on the surrounding environment. For example, low - noise construction equipment was used, and construction activities were scheduled during off - peak hours to minimize disturbance to nearby residents and businesses.
Completion and Significance

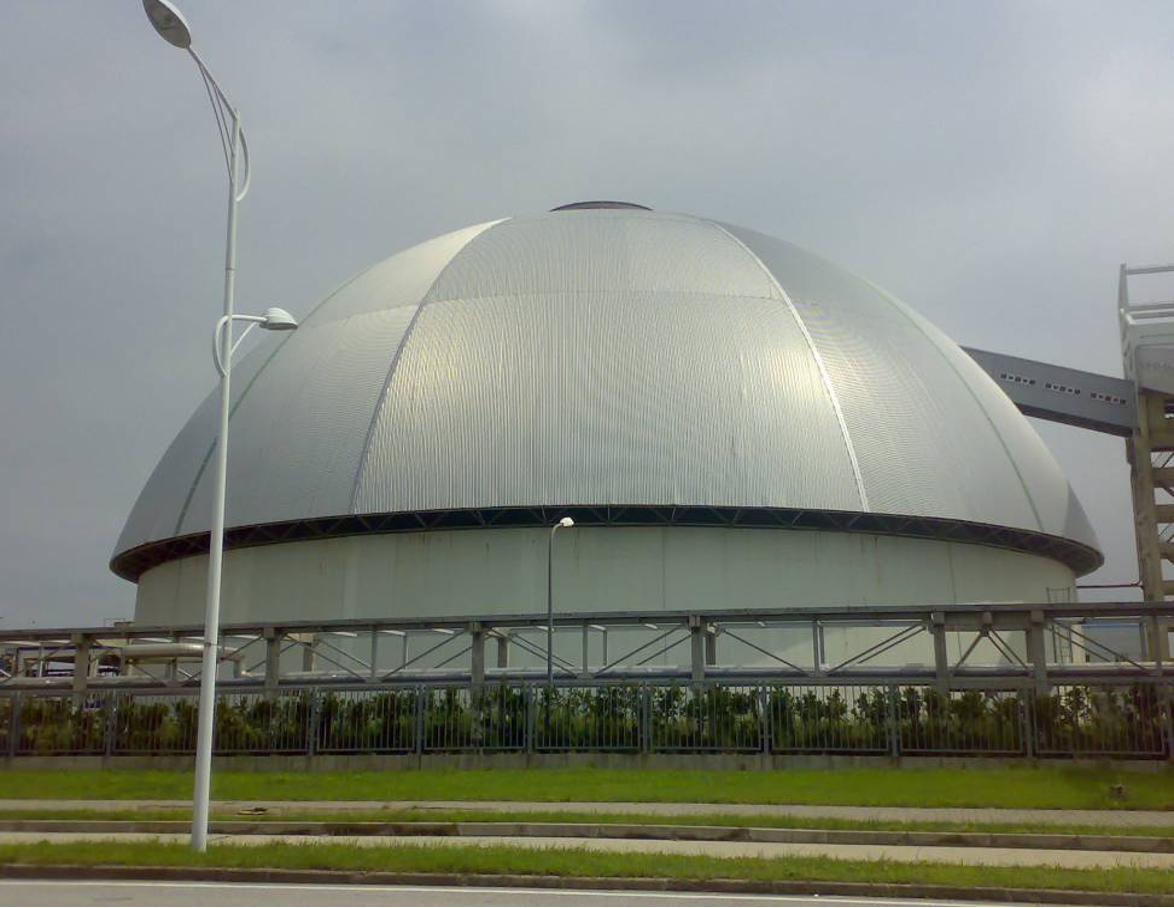

After months of hard work and meticulous construction, the Tianyuan Chemical Spherical Shell Grid Structure was successfully completed. It not only meets the functional requirements of the chemical plant but also stands as a remarkable example of modern steel structure engineering.
This project showcases Dunban's technical capabilities and commitment to quality. The successful construction of such a complex spherical structure has enhanced the company's reputation in the engineering industry. Moreover, it provides valuable experience for future large - scale infrastructure projects, especially those in special environments like chemical parks. It also demonstrates how innovative design, advanced construction techniques, and strict quality control can come together to create a high - quality and sustainable engineering project.
