What are Space Frame Structures and Where are They Used
Strength Through Geometric Configuration

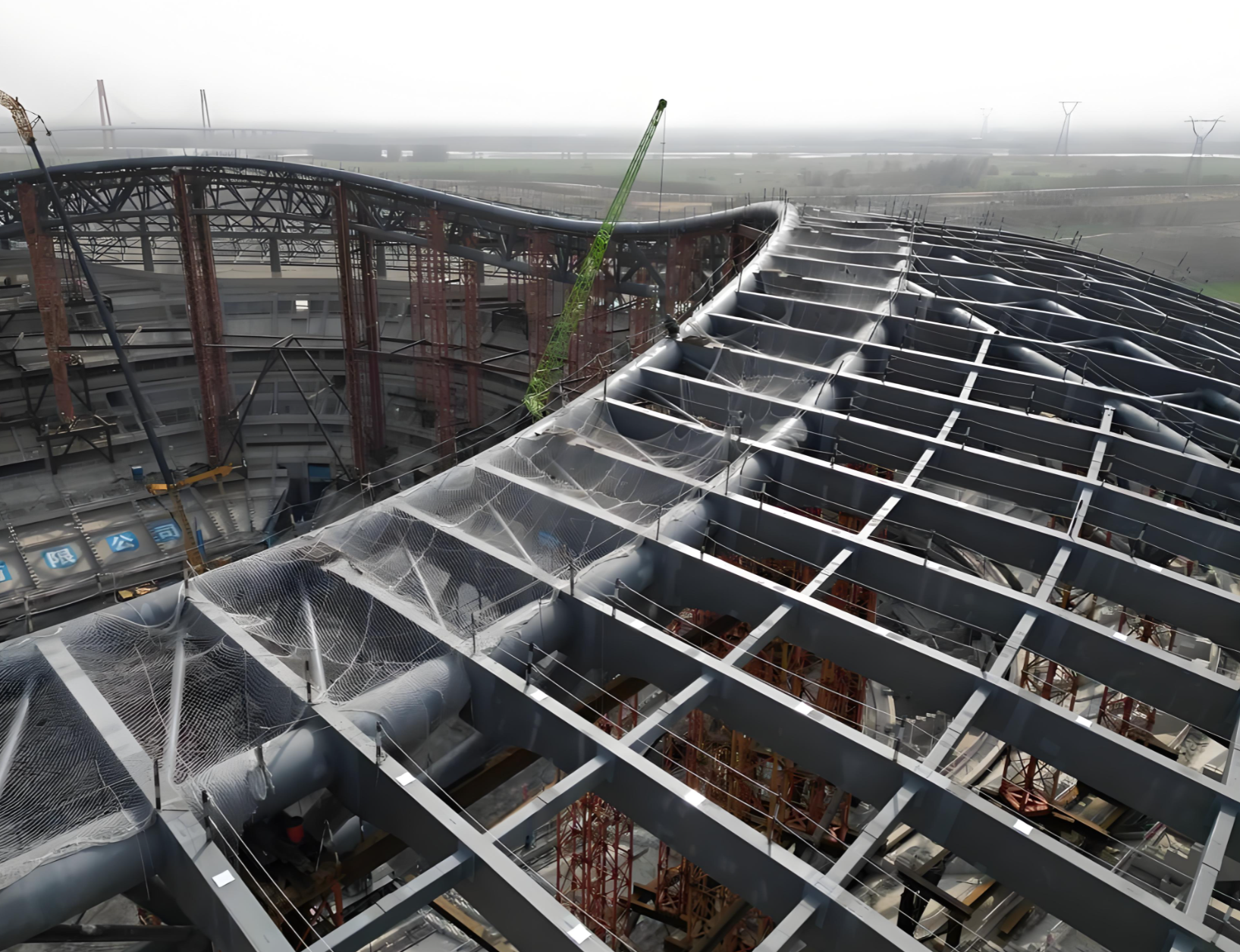

A space frame structure is a lightweight, rigid architectural framework constructed from interlocking struts arranged in a geometric pattern. Unlike traditional beams that primarily resist bending, the strength of a space frame derives from its three-dimensional triangular configuration. This design efficiently distributes loads—both gravity (dead load) and dynamic (live load like wind or snow)—as axial forces (tension or compression) along the length of each strut. This principle allows space frames to achieve exceptionally long spans without the need for intermediate supporting columns. The components, typically made of high-strength steel or aluminum, are connected at nodes using sophisticated systems such as spherical nodes or bolted connectors. This geometric efficiency results in a structure that offers an outstanding strength-to-weight ratio, making it both economically and structurally superior for covering large areas.
From Airports to Stadiums
The unique properties of space frames make them the ideal solution for a wide range of iconic buildings that require vast, column-free interior spaces. Common applications include:
Airport Terminals: Their ability to create expansive, unobstructed roofs is perfect for covering check-in halls and departure gates.

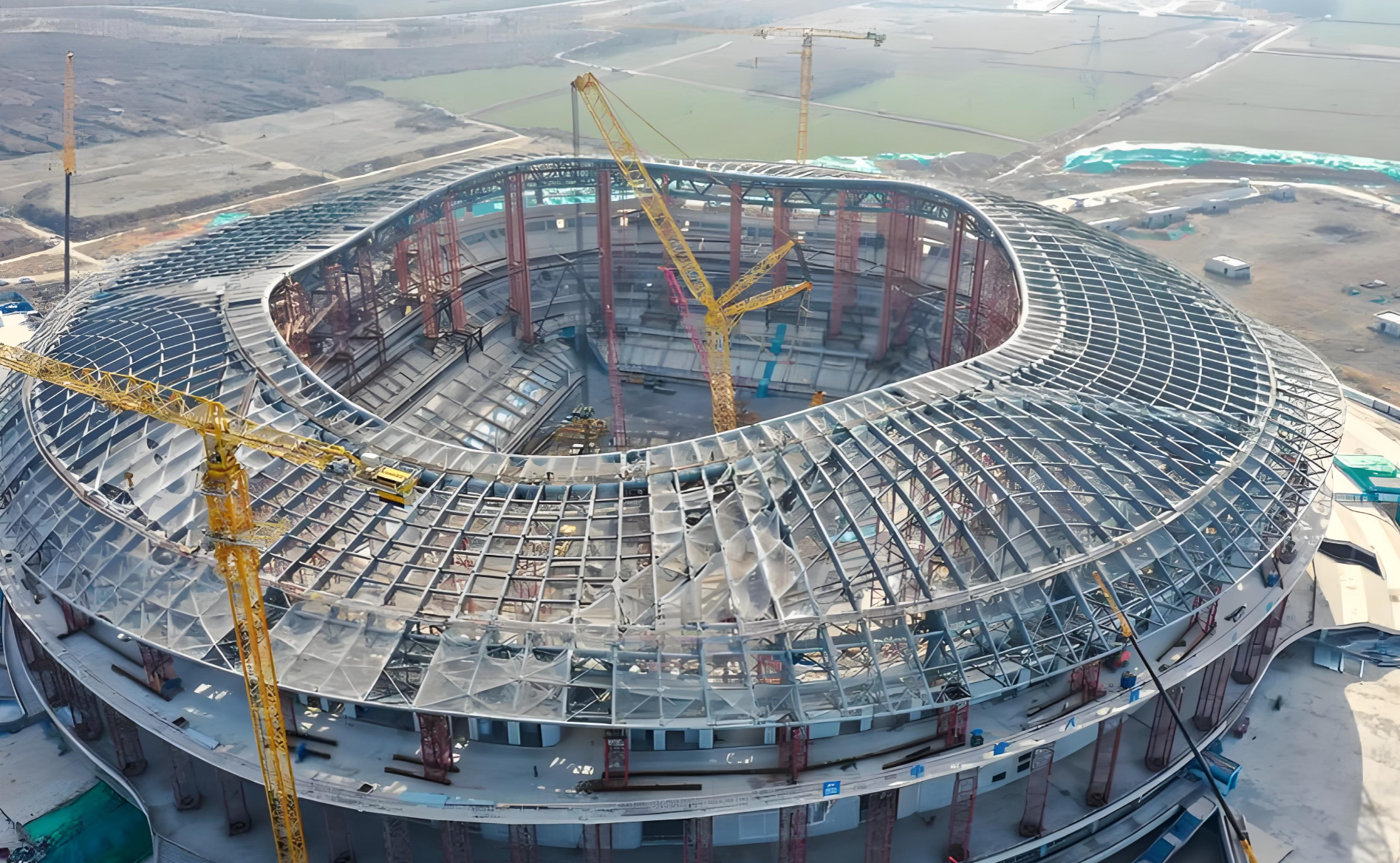

Sports Arenas and Stadiums: They provide clear sightlines for spectators by spanning over the seating areas and playing fields.
Convention Centers and Exhibition Halls: The large, flexible floor space can be easily reconfigured for different events.
Shopping Malls and Atriums: They create bright, open environments with ample natural light when combined with glazing.
Industrial Buildings: Such as aircraft hangars and warehouses, where large clear spans are necessary for operational efficiency.
Dunbon's expertise in this field is demonstrated in projects like the Tianyuan Chemical Spherical Shell Grid, showcasing their ability to handle complex geometric challenges with precision.
Precision Engineering and Fabrication

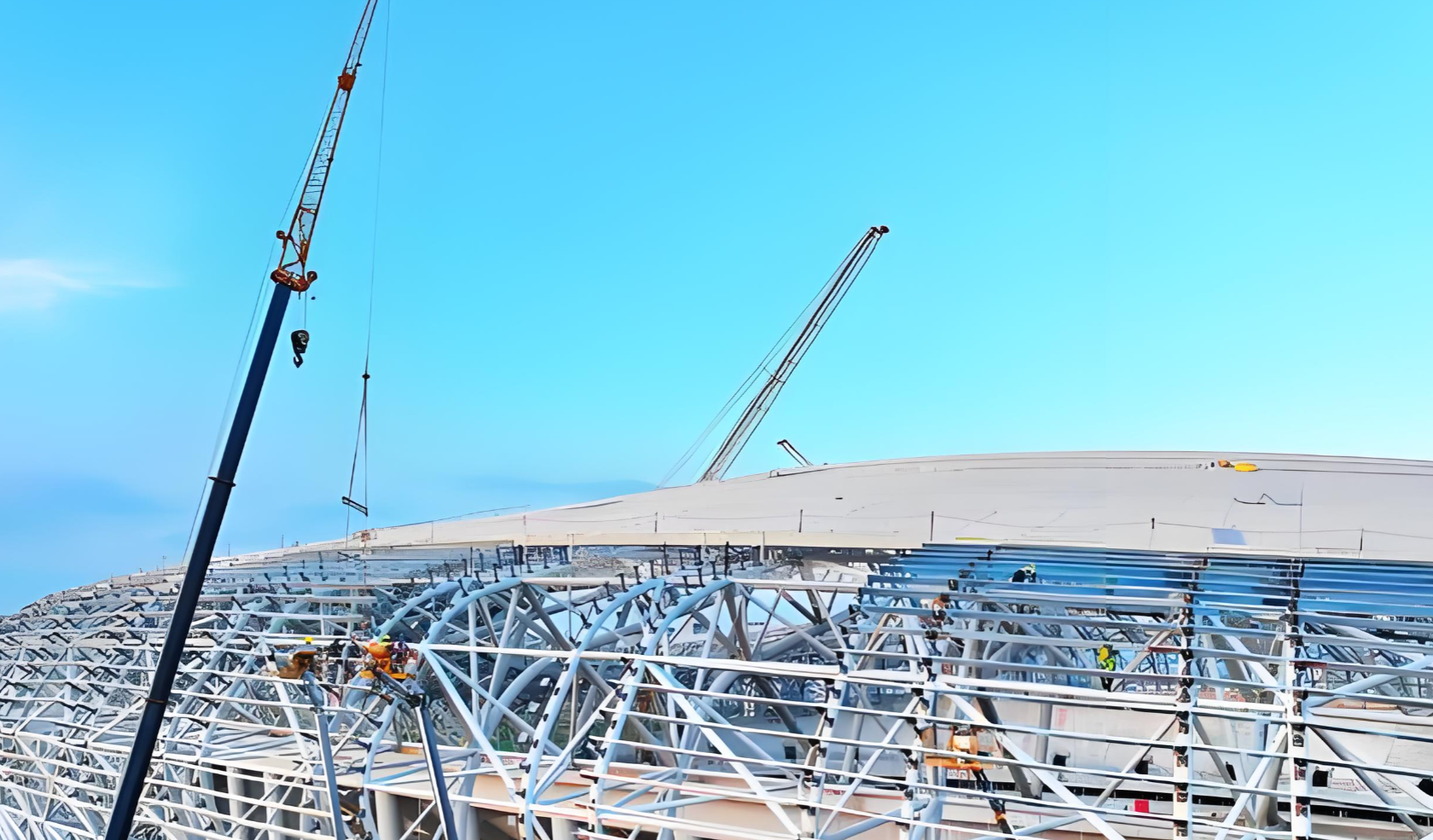

The successful implementation of a space frame structure hinges on precision engineering and manufacturing. At Jiangsu Dunbon, the process begins with advanced 3D modeling and structural analysis software to calculate loads and optimize the design. Each steel member is then precision-cut using CNC machinery to ensure exact dimensions. The most critical aspect is the node connection system. Dunbon utilizes high-precision spherical nodes or custom-designed bolted connectors, which are manufactured to tolerances that guarantee perfect fit-up during assembly. This meticulous off-site fabrication in a controlled factory environment ensures high quality, reduces on-site labor, and accelerates the overall construction schedule. The result is a structure that is not only visually striking but also delivers on its promise of durability, safety, and long-term performance.
In summary, space frame structures represent a pinnacle of architectural and engineering ingenuity, offering unmatched solutions for creating large, column-free enclosures. Their efficiency, versatility, and aesthetic appeal make them a preferred choice for landmark projects worldwide. Jiangsu Dunbon Steel Structure combines deep technical expertise with state-of-the-art manufacturing capabilities to deliver space frame solutions that are precisely engineered, reliably fabricated, and built to stand the test of time.
