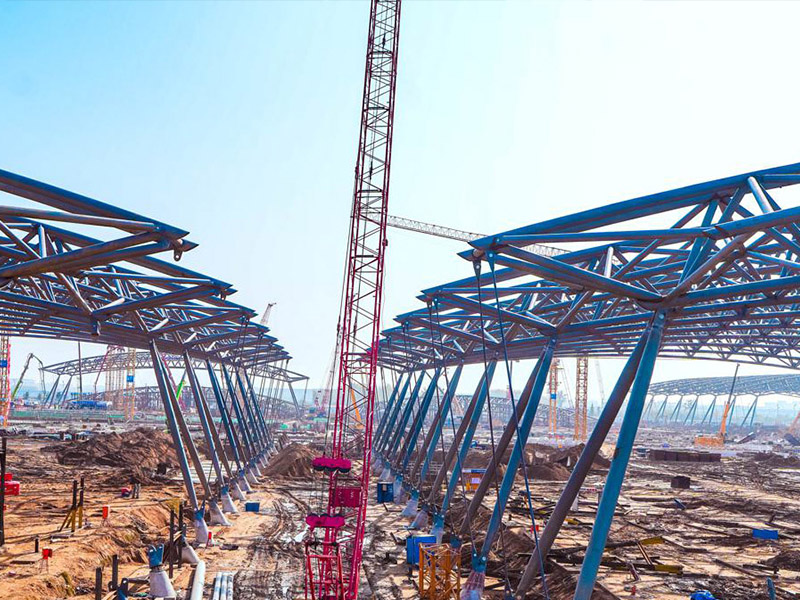

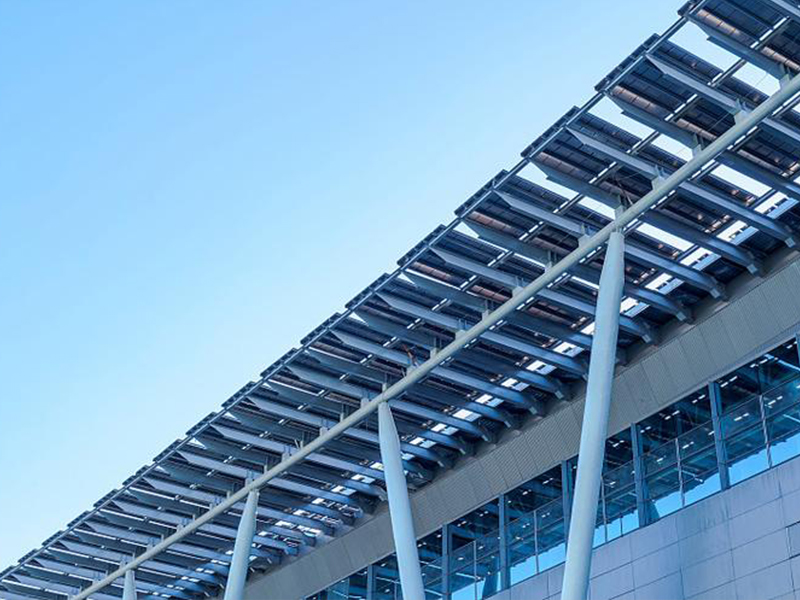

Exhibition Center Steel Roofing System
- Dunbon
- Suzhou China
- 3 mouths
- 20000㎡
Convention & Exhibition Center Steel Roof System – Technical Deep Dive & Comparative Advantage Analysis
I. Core Product Overview
Our Convention & Exhibition Center Steel Roof Systemis an engineered solution designed to address the unique structural, aesthetic, and functional demands of large-span venues (50m–200m+ spans). By integrating high-performance steel materials, modular fabrication, and adaptive design logic, it enables column-free interiors, maximizes spatial flexibility, and supports diverse architectural styles—from minimalist flat roofs to dynamic curved or vaulted forms.
Primary Use Cases:
Convention centers (exhibition halls, plenary sessions)
Multi-purpose arenas (trade shows, concerts)
Airport terminals / Transportation hubs
Large commercial complexes (malls, exhibition parks)
II. Key Technical Features & Benefits
The system’s competitiveness stems from its precision-engineered components, material science, and construction methodology. Below is a breakdown of core elements:
Feature Category | Technical Details | Benefits |
|---|---|---|
Structural Framework | - Material: Q355B/Q460GJ high-strength structural steel (custom grades available) | - Supports spans up to 200mwithout intermediate columns |
Roof Cladding Options | - Metal Panels: Aluminum alloy (3003/5052), pre-coated steel (PVDF/polyester finish) | - Aesthetic flexibility: Glossy/matte finishes, transparent or opaque effects |
Modular Fabrication | - 100% prefabricated in controlled factory environments (CAD/CAM-driven cutting, welding, and drilling) | - On-site installation time reduced by 40–60%vs. traditional cast-in-place |
Load-Bearing Optimization | - Finite Element Analysis (FEA) for stress distribution under wind (up to 200 km/h), snow (2–5 kN/m²), and seismic (Zone 8–9) loads | - Safety compliance: Meets Eurocode/GB50017/ASCE standards |
III. Comparative Advantage: Steel Roof vs. Traditional Alternatives
To highlight why our system is the preferred choice for global developers, here’s a side-by-side comparison with concrete roofsand lightweight aluminum structures:
Comparison Metric | Steel Roof System (Ours) | Traditional Concrete Roof | Lightweight Aluminum Roof |
|---|---|---|---|
Span Capability | Up to 200m(column-free large spaces) | Limited to 30–60m (requires internal columns) | Up to 50m (thin shells only; heavy loads limit span) |
Weight | ~50–80 kg/m² (lightweight yet high-strength) | 200–400 kg/m² (heavy foundation required) | 30–60 kg/m² (but lower load capacity) |
Installation Speed | 1–2 weeks/major section(prefabricated modules) | 3–6 months (cast-in-place, curing time) | 2–3 weeks (but limited to simple geometries) |
Design Flexibility | Customizable to any shape (curved, sloped, grid) | Rigid forms (mostly flat/slab) | Limited to flat/thin-shell designs |
Cost Efficiency | Lower lifecycle cost(durable, low maintenance) | High initial + maintenance (cracking, corrosion) | Cheaper short-term but prone to denting/deformation |
Sustainability | 100% recyclable steel, energy-efficient fabrication | High carbon footprint (cement production) | Energy-intensive recycling process |
Key Takeaway:Our steel roof system outperforms alternatives in span, speed, and adaptability, while maintaining cost and sustainability advantages—making it ideal for high-traffic, large-scale venues.
Why Choose Us?
As a trusted partner for global infrastructure projects, we provide:
✅ End-to-End Service: From structural design consultation to on-site installation supervision.
✅ Global Compliance: Certifications for Eurocode, GB50017, ASCE, and local building codes.
✅ Tailored Solutions: Engineering team adapts designs to your site’s wind/snow loads, seismic zones, and architectural vision.
✅ After-Sales Support: Warranty (10–25 years), maintenance guides, and emergency repair protocols.
Contact us todayto discuss your next convention center or exhibition hall project—and discover how our steel roof system turns architectural ambition into structural reality.
What are Dunbon Steel Structure's core qualifications and certifications?
Dunbon holds China's Grade-1 steel structure professional contracting qualification and is a member of both China Steel Structure Association and Taicang Construction Industry Association. The company is ISO 9001 certified and complies with European (EN1090-2) and American standards. It also maintains environmental and occupational health/safety management systems, ensuring rigorous quality control across all projects.What types of projects does Dunbon specialize in?
Dunbon designs, fabricates, and constructs diverse steel structures including stadiums, high-rise buildings, bridges, industrial plants, prefabricated buildings, and towers. Notable projects include the Ethiopia Hawassa Industrial Park (350,000m²), Tanzania’s Ubungo Interchange, and railway station canopies across China. The company also handles related water treatment, decoration, and HVAC systems.How does Dunbon ensure quality during production and installation?
The company follows an 8-step management flow: design review → material inspection → fabrication → QC checks (self/mutual/specialized inspections) → shipping → installation → completion acceptance → delivery. Advanced equipment like CNC drilling machines and automated welding systems ensure precision, with traceability maintained via heat number transfers.Which international markets does Dunbon serve?
Dunbon’s projects span over 15 countries, including the US, Germany, Japan, Australia, Ethiopia, UAE, and Bangladesh. Key overseas achievements involve industrial parks in Ethiopia, a paper mill in Belarus, and structural work for Japan’s Mitsubishi. The sales network emphasizes global collaboration and technical support.What is Dunbon’s operational capacity and business philosophy?
Founded in 2010 with a registered capital of ¥170 million and a total investment of ¥550 million, Dunbon operates from a 160,000m² facility in Jiangsu. Its philosophy—"Treat people with enthusiasm, work hard to improve quality"—prioritizes customer-centric services, full-lifecycle project support, and sustainable growth through innovation.
