Stadium Large Span Steel Cantilever Cable Membrane Roof System

Large-Span Cantilever Cable Membrane Ceiling System of Stadium

1. Overview: The Innovation Behind the System

Modern stadiums demand roofing solutions that combine unobstructed sightlines, structural grandeur, and climate adaptability. Traditional solid roofs often rely on heavy internal supports, compromising arena openness and increasing construction costs. The large-span cantilever cable membrane ceiling systemaddresses these challenges by integrating cantilevered steel trusses, high-tensile cables, and advanced membrane materialsto create a lightweight yet ultra-strong roofing structure. This system eliminates the need for interior columns within the main seating area, ensuring 100% visibility for spectators while delivering aesthetic appeal through flowing, sculptural forms. Widely adopted in Olympic stadiums, premier football arenas, and multi-purpose sports complexes, it represents the pinnacle of contemporary sports architecture.

2. Core Components & Technical Features

A. Cantilevered Steel Truss Structure

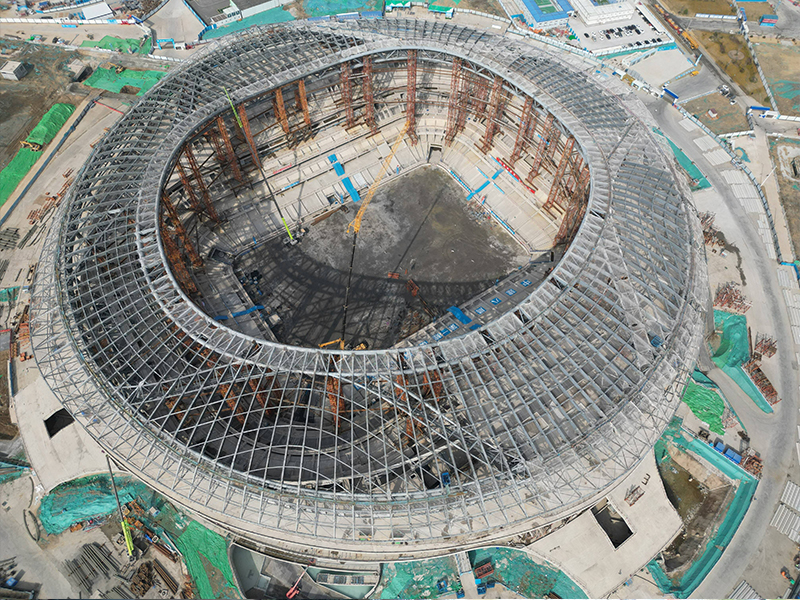

The foundation of the system lies in cantilevered steel trussesanchored at the stadium’s periphery (e.g., upper-tier stands or dedicated support piers). These trusses extend outward to form the roof’s primary load-bearing framework, with spans typically ranging from 50 to 100+ meters(some projects exceeding 150m). Key characteristics include:

• High-Strength Steel (Q355GJ/Q460GJ): Selected for its exceptional load capacity and fatigue resistance under dynamic stresses (wind, crowd movement).




• Optimized Geometry: Trapezoidal or arched truss profiles distribute forces evenly, reducing material usage while maintaining rigidity.




• Cantilever Design: Eliminates the need for central support columns, preserving the stadium’s interior openness and enhancing spectator experience.




B. High-Tensile Cable Network

Suspended between the cantilevered trusses, a precision-engineered cable system(comprising main cables, stay cables, and tensioning rods) transfers roof loads (self-weight, snow, wind) to the primary structure. Cables are typically made of galvanized steel wire (1,860–2,000MPa tensile strength)or stainless steel (for coastal/marine environments), with diameters ranging from 50mm to 150mm. Advantages include:

• Load Distribution Efficiency: Cables act as "suspension bridges," converting vertical loads into tensile forces along their length, minimizing bending stress on the trusses.




• Dynamic Adaptability: Pre-tensioning during installation ensures the membrane remains taut under varying temperatures (−30°C to +60°C) and wind loads (up to 250km/h).




• Seismic Resilience: Cable elasticity absorbs seismic shocks, reducing stress transfer to the stadium’s core structure.




C. Membrane Roofing Materials

The outer layer features high-performance membraneschosen for durability, light transmission, and weather resistance:

• PTFE (Polytetrafluoroethylene) Glass Cloth: The gold standard for stadiums—UV-resistant, self-cleaning (dirt slides off when wet), and with a lifespan of 25+ years. Offers 5–15% light transmission for diffused natural illumination.




• ETFE (Ethylene Tetrafluoroethylene) Foil: Lightweight (1/10th the weight of glass) and highly transparent (up to 95% light transmission), ideal for projects requiring daylight maximization (e.g., eco-friendly stadiums). Also supports printed patterns for shading or branding.




• PVC (Polyvinyl Chloride) Coated Polyester: Cost-effective with good weather resistance (10–15 year lifespan), often used for temporary or mid-tier venues.




D. Integrated Drainage & Ventilation

• Sloped Membrane Design: Gentle slopes (1–3°) direct rainwater to peripheral gutters, preventing pooling and reducing structural load.




• Ventilation Openings: Strategically placed membrane panels or cable gaps allow hot air to escape, reducing the "greenhouse effect" inside the stadium.

3. Performance Advantages

A. Structural Superiority

• Large Span Without Columns: Enables unobstructed sightlines across the entire seating bowl, enhancing fan engagement.




• Lightweight Efficiency: The combined weight of cables and membranes is often 30–50% lighter than traditional concrete or steel roofs, reducing foundation costs and seismic risks.




• Wind/Snow Load Resistance: Cables and trusses are engineered to withstand wind speeds over 250km/h(Typhoon-class) and snow loads up to 2kN/m²(based on local climate data).




B. Aesthetic & Functional Versatility

• Customizable Forms: Membranes can be shaped into waves, sails, or saddle geometries to match architectural themes (e.g., the "Bird’s Nest" inspired designs).




• Lighting Integration: LED strips embedded within cable channels or membrane edges create dynamic night-time visuals without external fixtures.




• Energy Efficiency: ETFE/PTFE membranes diffuse natural light, reducing daytime artificial lighting needs by 30–40%, while their insulating properties lower HVAC costs.




C. Sustainability & Maintenance

• Low Carbon Footprint: Membrane materials are recyclable (ETFE/PTFE), and the system’s lightweight design cuts construction emissions.




• Minimal Maintenance: PTFE membranes require only annual cleaning (rainwater self-cleaning reduces labor); ETFE foils are virtually maintenance-free for decades.

4. End-to-End Service & Project Workflow

A. Design Phase

• BIM Modeling: 3D simulations of the entire system (trusses, cables, membranes) to optimize geometry and detect clashes.




• Load Analysis: Finite element analysis (FEA) for wind, snow, seismic, and thermal expansion stresses.




• Material Selection: Tailored membrane choices based on climate (e.g., ETFE for tropical regions, PTFE for cold climates).




B. Fabrication

• Steel Trusses: CNC-cut and welded in ISO-certified workshops, with full penetration welds and ultrasonic testing.




• Cables: Pre-tensioned and tested for elongation under load; connectors use high-strength alloy pins.




• Membranes: Cut via CAD-guided machines, heat-welded for watertight seams, and pre-assembled into panels for rapid installation.




C. Installation

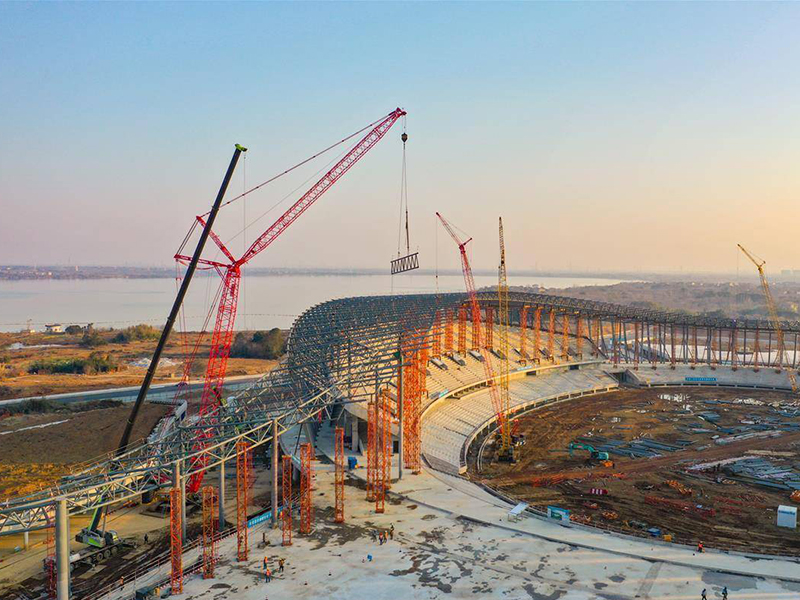

• Cantilever Truss Erection: Crane-lifted in segments, with temporary bracing for stability.




• Cable Network Assembly: Tensioned incrementally using hydraulic jacks to achieve precise force balance.




• Membrane Installation: Hoisted via cable channels or crane-mounted rigs, with edge sealing to prevent leakage.




D. Post-Installation

• 5–10 Year Warranty: Coverage for material defects and workmanship.




• Maintenance Plans: Annual inspections (cable tension checks, membrane seam integrity) and cleaning protocols.

5. Global Case Studies & Differentiators

Our team has delivered over 20 large-span cable membrane stadium projectsworldwide, including:

• Middle East Football Arena: 80m-span cantilever roof with PTFE membranes, resisting 180km/h desert winds.




• Asian Games Stadium: ETFE roof with printed patterns for shading, achieving 40% natural light transmission.




• European Multi-Purpose Arena: Hybrid PTFE-PVC system with integrated LED lighting for night events.




Why Choose Us?

• Full-Cycle Expertise: From conceptual design to 20-year maintenance, ensuring seamless execution.




• Local Adaptation: Designs optimized for regional climates (e.g., anti-corrosion coatings for coastal projects).




• Innovation Leadership: Patented cable tensioning techniques and BIM-driven error prevention.

6. Conclusion

The large-span cantilever cable membrane ceiling system is the future of stadium roofing—blending engineering precision, architectural beauty, and functional excellence. By eliminating columns, maximizing natural light, and resisting extreme environments, it creates iconic venues that elevate the spectator experience while meeting the most demanding technical standards. Partner with us to bring your stadium vision to life.
