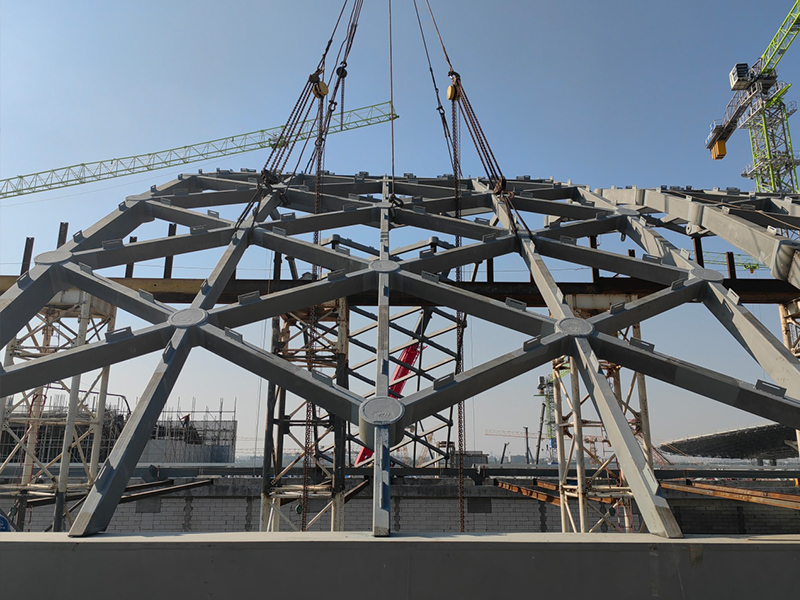

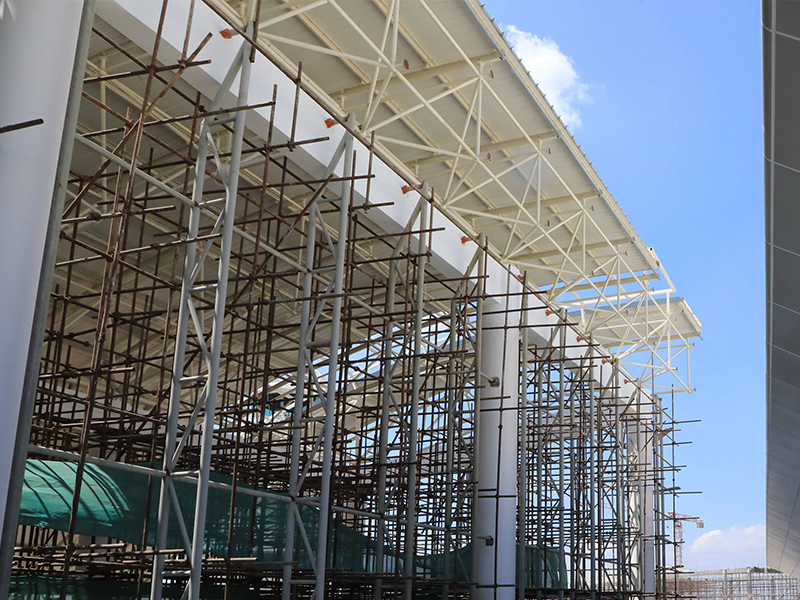

Large-span Special-shaped Steel Structure Ceiling and Bracing System of Airport

Airport Steel Structure Construction

1. Overview: Why Steel for Airport Infrastructure?

Airports demand infrastructure that combines exceptional strength, flexibility, and longevity to accommodate high traffic volumes, heavy equipment (e.g., aircraft hangars), and harsh environmental conditions (wind, snow, corrosion). Steel structures emerge as the optimal choice due to their superior load-bearing capacity (up to 100+ tons per beam), lightweight yet rigid frameworks (reducing foundation costs), and rapid construction timelines (minimizing operational disruptions). Compared to concrete, steel offers 30%-50% faster assembly, 20% lighter self-weight (easing seismic resistance), and unparalleled design adaptability (curved roofs, large-span terminals). Our specialized airport steel construction service addresses these needs with tailored solutions for every facility type.

2. Core Products: Tailored Steel Solutions for Key Airport Facilities

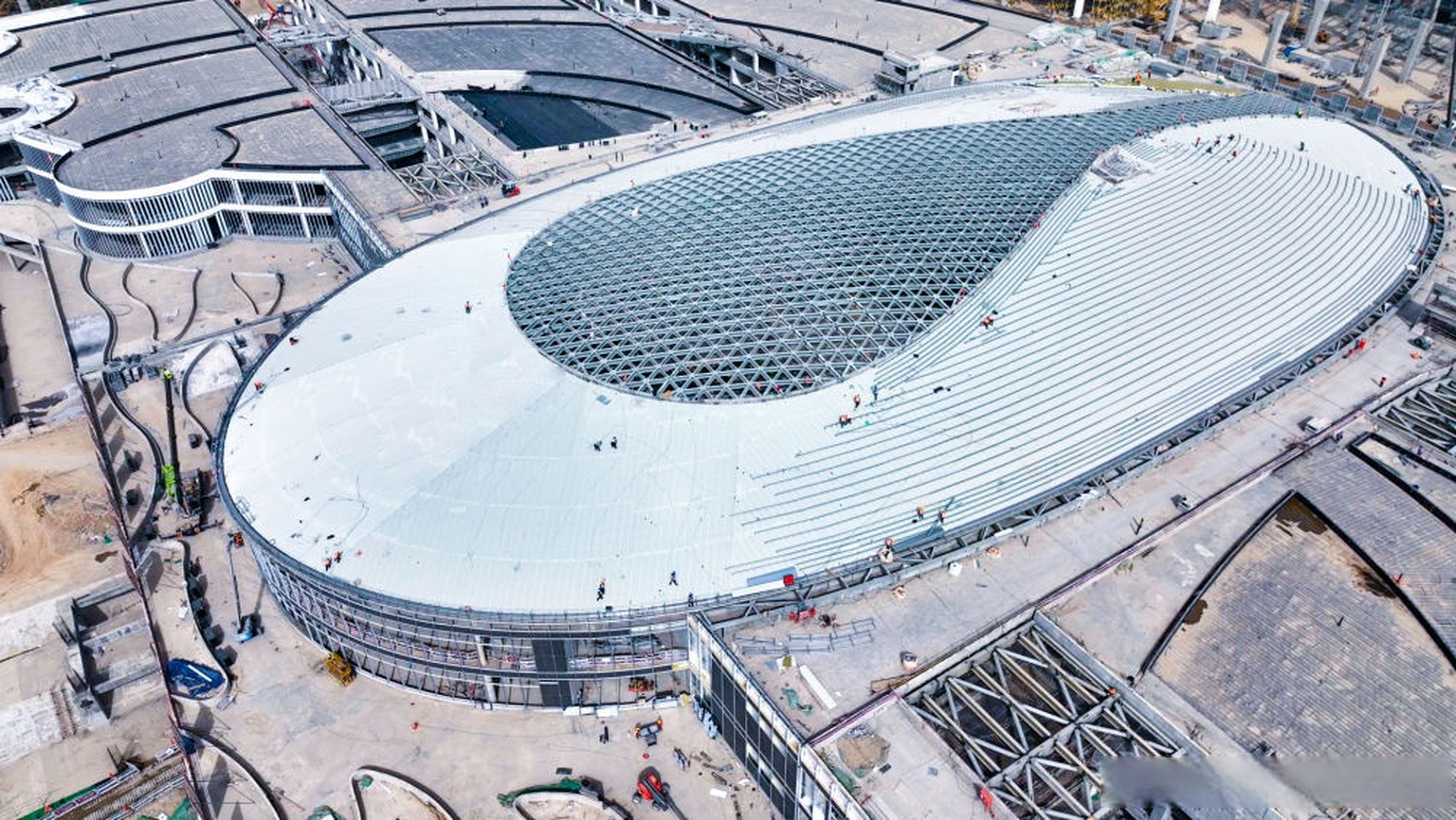

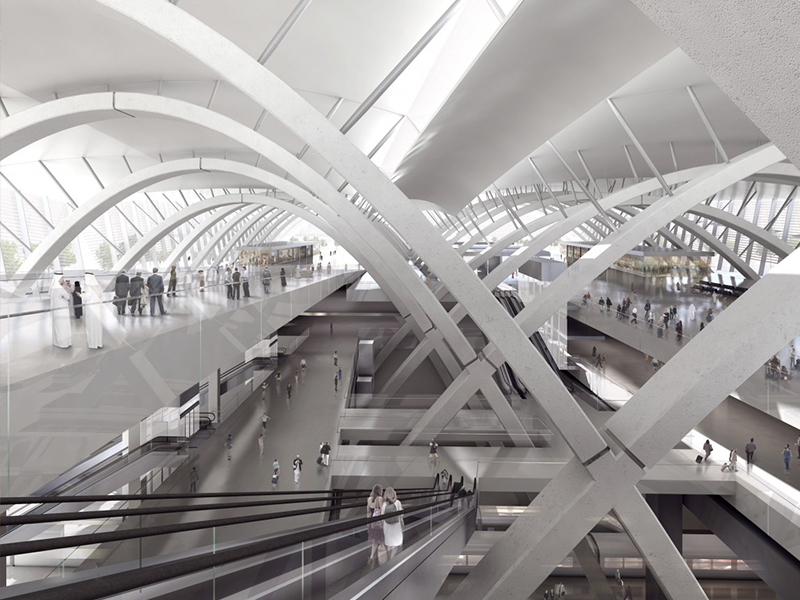

A. Terminal Buildings

Designed for passenger flow efficiency, terminal steel frames feature large-span column-free spaces (up to 30-40 meters) to enable open concourses, natural lighting, and flexible zoning. We employ composite steel-concrete decks for floors (enhancing fire resistance and load distribution) and modular prefabricated components (reducing on-site welding). Key features include:

• Seismic & Wind Resistance: Braced frames or moment-resisting systems compliant with local codes (e.g., IBC, Eurocode 8), tested for wind speeds exceeding 200 km/h and seismic zones up to 9.




• Aesthetic Flexibility: Curved or sloped roofs (supported by tubular or lattice trusses) to match architectural visions while maintaining structural integrity.




• Integration: Embedded channels for MEP (mechanical, electrical, plumbing) systems, reducing ceiling clutter and optimizing space.




B. Aircraft Hangars

Hangars require massive clear spans (50-100+ meters) to accommodate diverse aircraft sizes (from regional jets to wide-body planes) without interior columns. Our solutions include:

• Heavy-Duty Portal Frames: High-strength H-beams or box girders (Q460 steel) with bolted/welded connections, designed for concentrated roof loads (cranes, lighting) and lateral forces.




• Expandable Modules: Prefabricated bays (standard 20-30m widths) that can be linked linearly or in “L”/“U” configurations for future expansion.




• Door Systems Integration: Built-in tracks for hydraulic or bi-fold hangar doors (up to 60m wide), with reinforced steel lintels to support door mechanisms.




C. Control Towers & Technical Facilities

Towers demand vertical stability and minimal footprint. Our designs use tapered steel columns (for aerodynamic efficiency) and rigid floor diaphragms to handle equipment vibrations. Technical buildings (e.g., baggage handling, fuel storage) utilize corrosion-resistant galvanized or stainless-steel components for longevity in harsh environments.

D. Supporting Structures

Includes bridges (connecting terminals to satellites), parking garages (pre-fabricated steel grids for rapid assembly), and perimeter fences (high-tensile steel mesh with anti-climb features).

3. Key Materials & Quality Assurance

We source steel from certified mills (e.g., ArcelorMittal, Nippon Steel) with mill test certificates (MTC) for traceability. Common grades include:

• Q355B/Q460: High-strength low-alloy (HSLA) steel for primary frames (yield strength 355-460 MPa), balancing weight and load capacity.




• Galvanized/Galvalume Coatings: Zinc/aluminum layers (thickness 80-275μm) for corrosion resistance in coastal or snowy regions.




• Fireproofing: Sprayed intumescent coatings or cladding (e.g., calcium silicate boards) to achieve 1-2 hour fire ratings as required.




Quality control follows EN 1090 Execution Class 2/3(for structural steelwork) and AWS D1.1/D1.6(welding standards). Every batch undergoes ultrasonic testing (UT), tensile tests, and third-party inspections (e.g., SGS, Bureau Veritas).

4. End-to-End Services: From Concept to Commissioning

A. Pre-Construction: Customized Design & Engineering

Our in-house team collaborates with architects, airport operators, and local authorities to develop BIM (Building Information Modeling)-driven designs. Key steps:

• Load Analysis: Simulations for dead loads (steel, roofing), live loads (passengers, baggage carts), and environmental loads (wind, snow, seismic).




• Code Compliance: Alignment with international standards (ICAO Annex 14, FAA AC 150, Eurocode) and local regulations (e.g., China GB 50017, US AISC).




• Cost Optimization: Material selection (e.g., high-strength steel to reduce section sizes) and modular design to cut waste and labor costs.




B. Fabrication: Precision Manufacturing

All components are fabricated in our ISO 9001-certified workshops using CNC cutting, robotic welding, and automated drilling. Processes include:

• Cutting & Drilling: Plasma/laser cutting for ±1mm precision; pre-drilled holes for bolted connections to minimize on-site adjustments.




• Welding: Full-penetration welds (checked via radiography/ultrasonic testing) for critical joints; skilled welders certified to AWS D1.1.




• Surface Treatment: Shot blasting (Sa2.5 grade) followed by primer/paint or galvanization.




C. Logistics & On-Site Erection

• Transport: Components are disassembled into modular units (max 40ft container size) with protective packaging to prevent damage.




• Erection: Crane-assisted assembly with temporary bracing; our certified riggers and welders follow step-by-step torque/bolt tensioning protocols. Safety measures include fall protection systems, daily site inspections, and real-time progress tracking via drones/BIM.




D. Post-Installation: Maintenance & Support

We provide a 5-10 year warranty(extendable) and offer:

• Inspection Plans: Annual checks for corrosion, bolt looseness, and joint integrity.




• Retrofitting: Upgrades for expanded capacity or new technologies (e.g., solar panel mounts on roofs).




• Training: Workshops for airport staff on basic maintenance (e.g., sealant replacement, corrosion monitoring).

•

5. Global Project Experience & Differentiators

With 15+ years in infrastructure construction, we’ve delivered airport steel projects across Asia, the Middle East, and Africa, including:

• A Terminal Expansion (Southeast Asia): 45,000㎡ large-span terminal with 36m clear bays, completed 30% faster than traditional methods.




• Military Airbase Hangars (Middle East): Blast-resistant steel frames (designed for 200km/h wind loads) with integrated blast-proof doors.




• Regional Airport Upgrade (Africa): Corrosion-resistant steel structures for humid climates, reducing maintenance costs by 40%.




Our Competitive Edge:

• Full-Cycle Capability: One-stop service from design to maintenance, eliminating coordination gaps.




• Local Adaptation: Designs tailored to regional climates (e.g., anti-salt spray coatings for coastal airports).




• Sustainability: Up to 30% recycled steel content; energy-efficient fabrication processes (reducing carbon footprint).




•

Airport steel structure construction is a cornerstone of modern aviation infrastructure, requiring expertise in design, materials, and execution. Our comprehensive service ensures safe, durable, and cost-effective solutions that meet the dynamic demands of global airports—empowering operators to scale efficiently while delivering exceptional passenger experiences. Partner with us to build the foundations of tomorrow’s aviation hubs.
