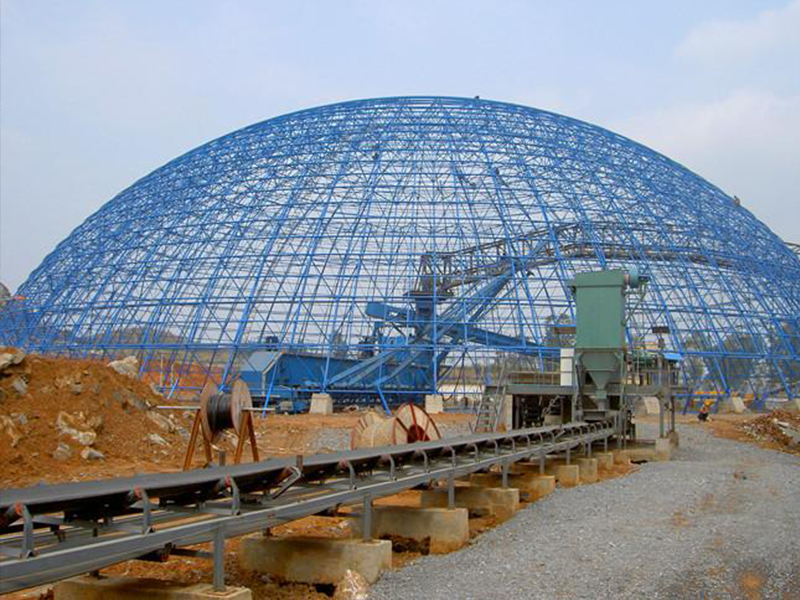

Spherical Coal-Storage Building with Steel Structure
- Dunbon
- Suzhou China
- 3 mouths
- 20000㎡
Spherical Coal Storage Steel Structure
1. Design Principles
Spherical coal storage steel structures are engineered to provide large-capacity, fully enclosed coal storagewhile optimizing structural efficiency, durability, and operational safety. The key design principles include:
1.1 Structural Form & Load Distribution
Geometric Stability: The spherical (or semi-spherical) dome shape distributes wind, snow, and seismic loads uniformly, minimizing stress concentrations.

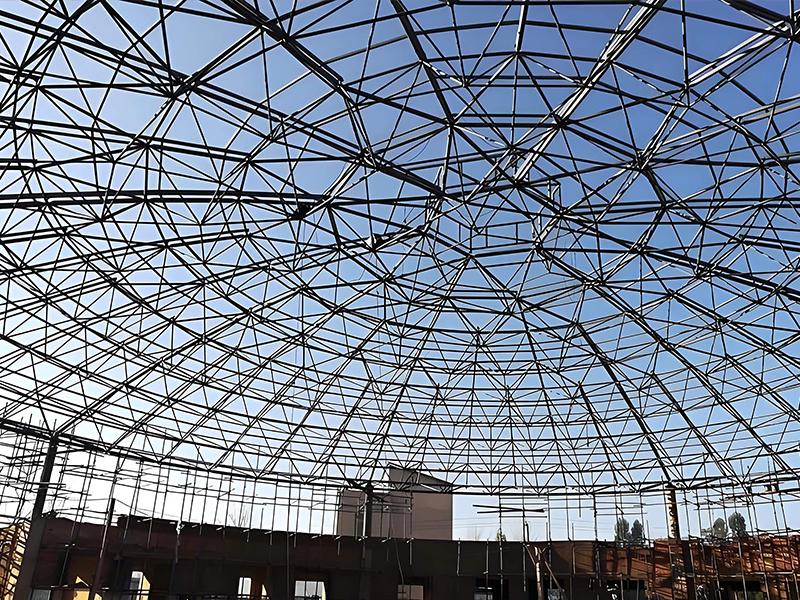

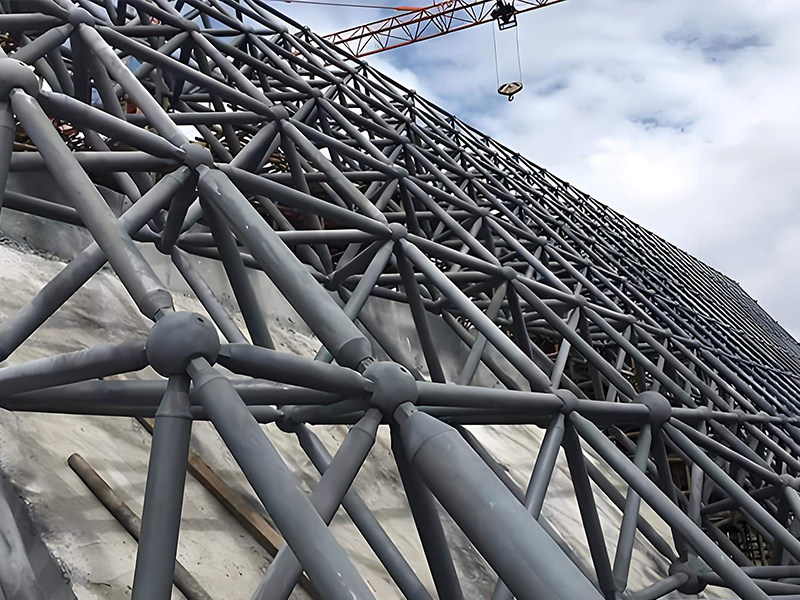

Grid Shell System: Typically constructed using bolted or welded steel trusses (space frame or lattice structure)to form a self-supporting shell.
Material Selection: High-strength Q345/Q355 steel(or Q460GJ for extreme loads) ensures high load-bearing capacitywhile maintaining lightweight construction.
1.2 Enclosure & Environmental Protection

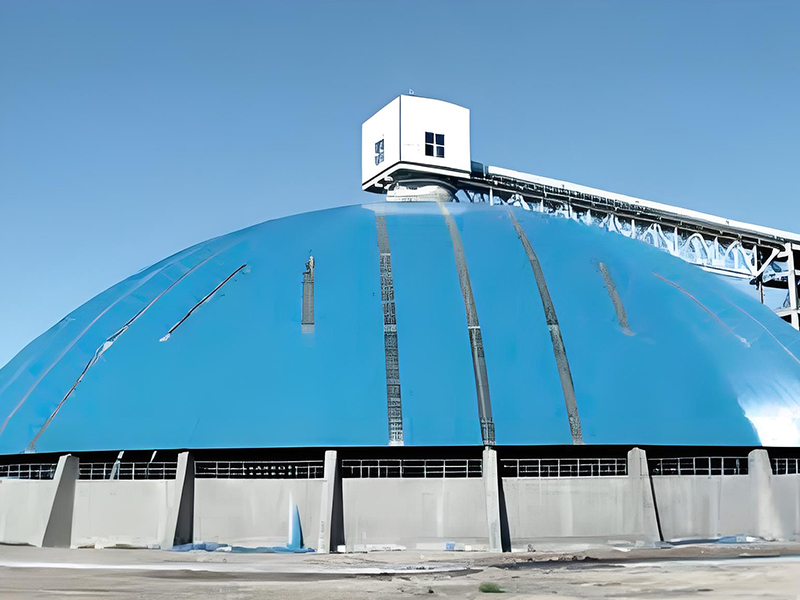

Fully Sealed Design: Prevents coal dust dispersion, spontaneous combustion, and water ingress, meeting environmental regulations.
Ventilation & Dust Control: Integrated ventilation systems and misting spraysreduce explosive gas buildup and coal dust pollution.
Corrosion Resistance: Hot-dip galvanized or powder-coated steelensures long-term durabilityin harsh coal storage environments.
1.3 Operational Efficiency
Large Span (50m–150m+): Enables column-free interior space, maximizing storage capacity (typically 100,000–500,000 tons).

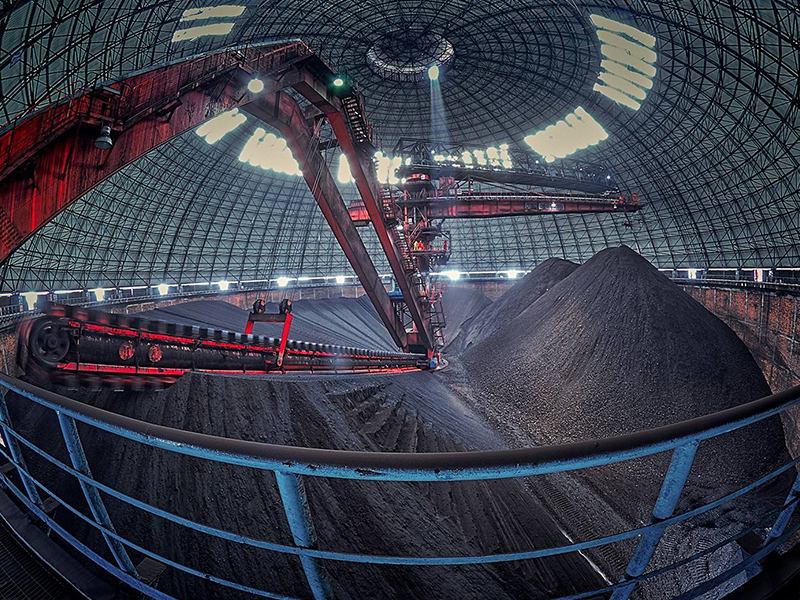

Automated Material Handling: Compatible with stacker-reclaimers, conveyor belts, and bucket wheel excavatorsfor efficient coal inflow/outflow.
2. Project Advantages
2.1 Superior to Traditional Storage Methods
Feature | Spherical Steel Coal Storage | Conventional Open Yard | Reinforced Concrete Silo |
|---|---|---|---|
Dust Control | Fully enclosed, minimal dust | High dust emission | Moderate (sealed but rigid) |
Weather Protection | Resistant to rain, wind, snow | Vulnerable | Vulnerable (cracking risk) |
Storage Capacity | Large span (50m–150m+), 100K–500K tons | Limited by space | Limited by height |
Maintenance Cost | Low (steel durability) | High (dust cleaning, erosion) | High (cracking, corrosion) |
Construction Speed | Fast (prefabricated steel modules) | Slow (earthwork, compaction) | Slow (concrete curing) |
2.2 Key Benefits
✔ High Storage Efficiency– Minimal land usagedue to large-span design.
✔ Environmental Compliance– Zero dust emission, fire-resistant, and explosion-proof.
✔ Cost-Effective– Lower lifecycle costthan concrete silos.
✔ Quick Installation– Prefabricated steel modules reduce on-site construction time.
✔ Adaptable Design– Customizable diameters (50m–150m+) and heights (30m–70m)
3. Construction Challenges & Solutions
3.1 Major Construction Difficulties
Challenge | Description | Solution |
|---|---|---|
Large-Span Steel Erection | High-altitude assembly (30m–70m), requiring precise alignment | Prefabricated modular trusses, bolted connections, and crane-assisted lifting |
Complex Geometric Precision | Spherical shape demands tight tolerances (±2mm for joints) | 3D modeling (BIM), laser-guided positioning, and stress analysis |
Wind & Load Stability | High wind/snow loads require reinforced joints & bracing | Wind tunnel testing, optimized truss layout, and high-strength bolts |
Seamless Enclosure | Roof-to-wall connections must prevent leaks & structural weakness | Integrated sealing systems (gaskets, welding, and clamping) |

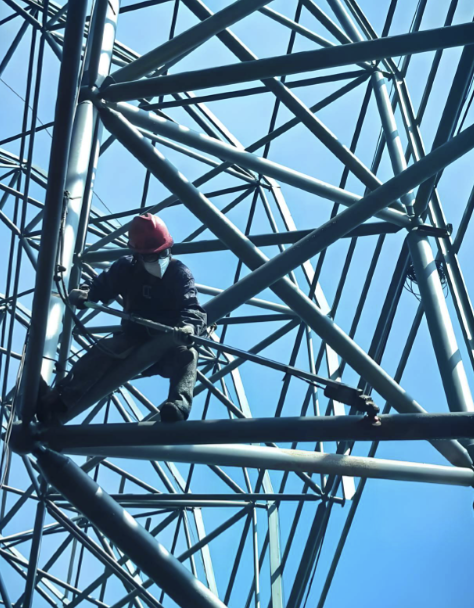

On-Site Safety | High-altitude work & heavy lifting risks | Strict scaffolding, fall protection, and crane safety protocols |
3.2 Advanced Construction Techniques
High-Altitude Bolted Assembly– Minimizes welding risks at height.
BIM & Prefabrication– Ensures precision before on-site installation.
Progressive Loading– Prevents deformation during construction.
4. Dunbon’s Competitive Edge
4.1 Expertise in Large-Span Steel Structures
✅ 20+ Years of Experiencein spherical coal storage, power plant enclosures, and industrial steel domes.
✅ In-House Design & Engineering– BIM-based optimization, load simulation, and custom solutions.
✅ Global Project Portfolio– Successfully delivered projects in Asia, Africa, and the Middle East.
4.2 End-to-End Service
🔹 Design & Engineering– Customized spherical steel structures based on site conditions.
🔹 Prefabrication– Factory-controlled steel module production for quality assurance.
🔹 Installation & Commissioning– **Expert erection team with crane & bolted assembly techniques.
🔹 Maintenance & Upgrades– Long-term support for corrosion protection & structural reinforcement.
4.3 Why Choose Dunbon?
✔ Faster Construction– Prefabricated steel reduces on-site time by 40%.
✔ Cost-Effective– Lower material waste & labor costs than concrete alternatives.
✔ Reliable Performance– 50+ year lifespan with minimal maintenance.
✔ Eco-Friendly– Dust-free, energy-efficient, and compliant with global emissions standards.
Spherical coal storage steel structures are the most efficient, durable, and environmentally friendly solutionfor large-scale coal storage. Dunbon’s expertise in high-span steel engineering ensures superior design, rapid installation, and long-term reliability—making us the preferred partner for power plants, ports, and industrial coal depots worldwide.
What are Dunbon Steel Structure's core qualifications and certifications?
Dunbon holds China's Grade-1 steel structure professional contracting qualification and is a member of both China Steel Structure Association and Taicang Construction Industry Association. The company is ISO 9001 certified and complies with European (EN1090-2) and American standards. It also maintains environmental and occupational health/safety management systems, ensuring rigorous quality control across all projects.What types of projects does Dunbon specialize in?
Dunbon designs, fabricates, and constructs diverse steel structures including stadiums, high-rise buildings, bridges, industrial plants, prefabricated buildings, and towers. Notable projects include the Ethiopia Hawassa Industrial Park (350,000m²), Tanzania’s Ubungo Interchange, and railway station canopies across China. The company also handles related water treatment, decoration, and HVAC systems.How does Dunbon ensure quality during production and installation?
The company follows an 8-step management flow: design review → material inspection → fabrication → QC checks (self/mutual/specialized inspections) → shipping → installation → completion acceptance → delivery. Advanced equipment like CNC drilling machines and automated welding systems ensure precision, with traceability maintained via heat number transfers.Which international markets does Dunbon serve?
Dunbon’s projects span over 15 countries, including the US, Germany, Japan, Australia, Ethiopia, UAE, and Bangladesh. Key overseas achievements involve industrial parks in Ethiopia, a paper mill in Belarus, and structural work for Japan’s Mitsubishi. The sales network emphasizes global collaboration and technical support.What is Dunbon’s operational capacity and business philosophy?
Founded in 2010 with a registered capital of ¥170 million and a total investment of ¥550 million, Dunbon operates from a 160,000m² facility in Jiangsu. Its philosophy—"Treat people with enthusiasm, work hard to improve quality"—prioritizes customer-centric services, full-lifecycle project support, and sustainable growth through innovation.
